Specification
Sales Kit

Specification

Dimensions

Next
  • kia_ck_pe_stinger_dimensions_01_w kia_ck_pe_stinger_dimensions_01_t kia_ck_pe_stinger_dimensions_01_m
  • kia_ck_pe_stinger_dimensions_02_w kia_ck_pe_stinger_dimensions_02_t kia_ck_pe_stinger_dimensions_02_m
  • kia_ck_pe_stinger_dimensions_03_w kia_ck_pe_stinger_dimensions_03_t kia_ck_pe_stinger_dimensions_03_m
Prev
Dimensions
table fix area
Overall length
Overall width
Overall height
Wheelbase
Wheeltread (front)
Wheeltread (rear)
Head room (front)
Head room (rear)
Leg room (front)
Leg room (rear)
Shoulder room (front)
Shoulder room (rear)
4830
1870
1400
2905
18": 1,596  /  19": 1,596
18": 1,647  /  19": 1,619
974
939
1083
925
1433
1391

Engine

Next

  • Theta II 2.0 T-GDI engine

    • Theta II 2.0 T-GDI engine 1998
    • Lambda 3.3 T-GDI engine 255 / 6,200
    • 36.0 / 1,400~4,000

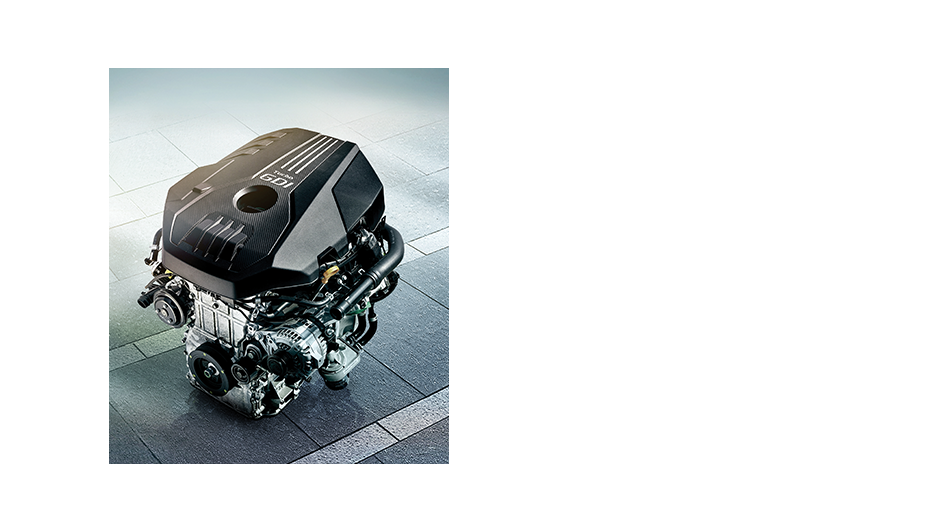

    Theta II 2.0 T-GDI engine

  • Lambda 3.3 T-GDI engine

    • Theta II 2.0 T-GDI engine 3342
    • Lambda 3.3 T-GDI engine 373 / 6,000
    • 52.0/ 1,300~4,500

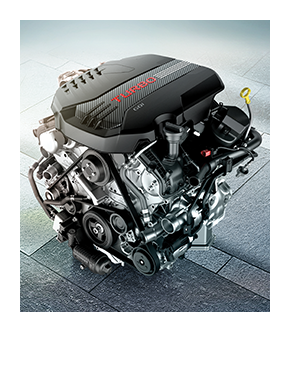

    Lambda 3.3 T-GDI engine
Prev

Wheels

Next

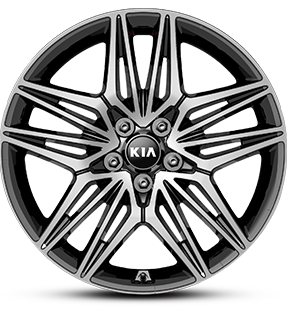

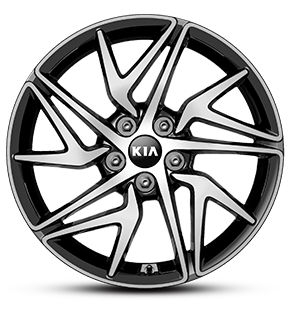

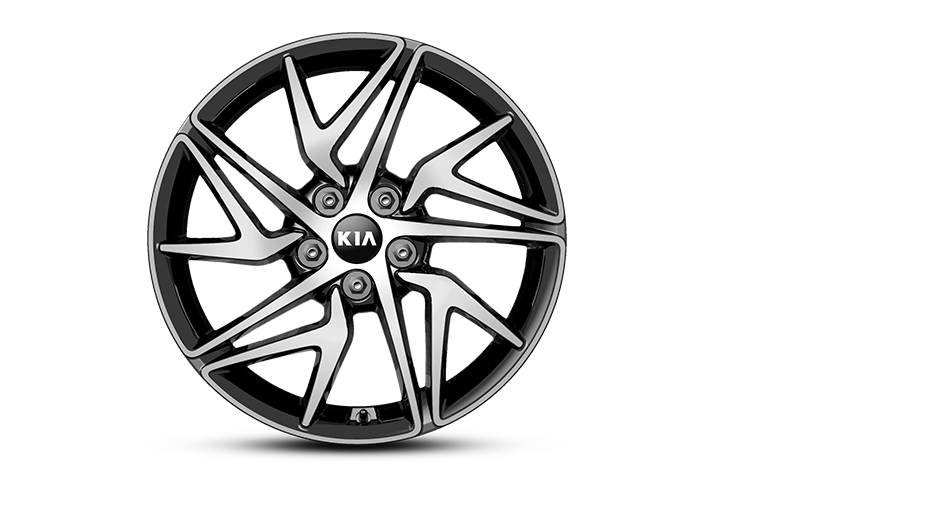

  • 18” Alloy Wheel (A-type) 225/45R

    225/45R

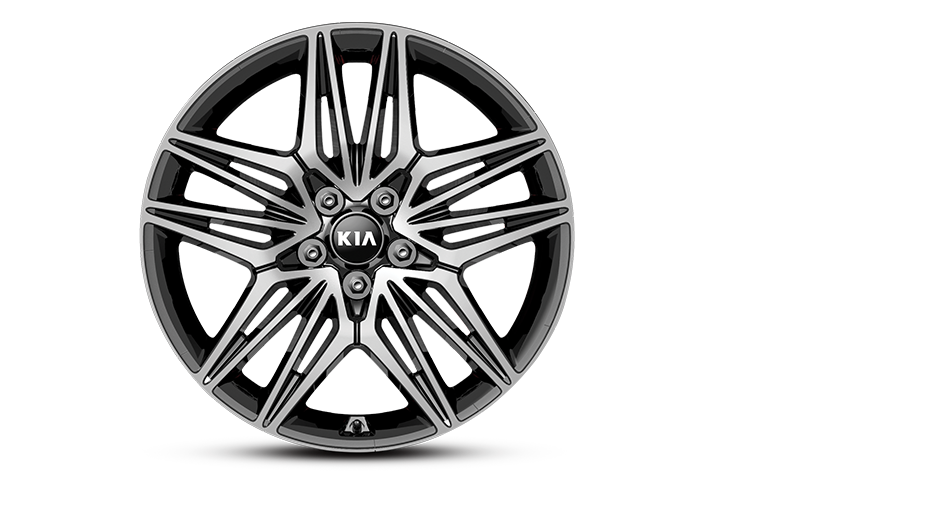

  • 19” Alloy Wheel 225/40R (Front) l 255/35R (Rear)

    225/40R (Front) l 255/35R (Rear)
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
