DIMENSIONS(mm)
table fix area
CAR
Overall length
Overall width
Overall height
Wheelbase
Wheel tread (front)
Wheel tread (rear)
Overhang (front)
Overhang (rear)
Legroom (front/rear)
Headroom (front/rear)
Shoulder room (front/rear)
Cargo space capacity (l, VDA)

Soul EV
4,195
1,800
1,605
2,600
1,565
1,575
865
730
1,044/927

1,013/988 (without sunroof)

973/988 (with sunroof)
1,410/1,390
1,339
Technical specifications
table fix area

    Mid-Range Long Range
Electric motor Type

Permanent Magnet Synchronous Motor
Max. power output (kW) 100 150
Max. torque (Nm) 395 395
Battery Type LIPB (Lithium-Ion Polymer Battery)
Voltage (V) 327 356
Capacity (kWh) 120 180
Energy (kWh) 39.2 64
Power (kW) 104 170
Weight (kg) 317 457
Performance Acceleration (sec./0 to 100 km/h) 9.9 7.9
Maximum speed 155 167
Pure Electric Range (km) 277 452
Energy Consumption (kWh/km)  (Combine) 145 157
Kerb weight (kg) (max.) 1,593 1,682
Gross vehicle weight (kg) 2,025 2,180

Wheels

Next

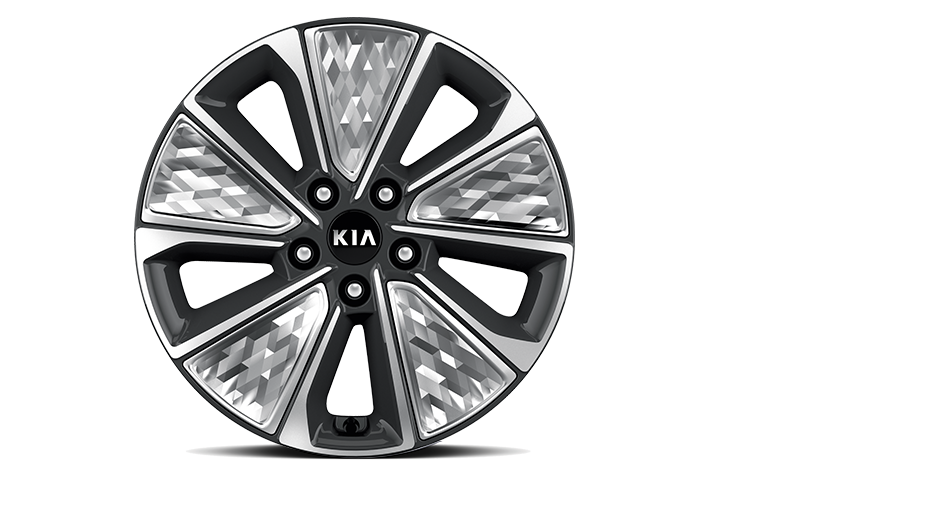

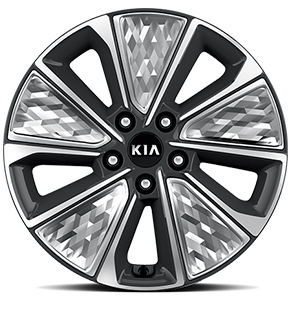

  • 17" Alloy Wheel

    17" Alloy Wheel
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
