DIMENSIONS(mm)

table fix area
CAR
Overall length
Overall width
Overall height
Wheelbase
Wheeltread (front)
Wheeltread (rear)
Head room (front)
Leg room (front)
Fuel trank

Cerato/Forte
4,510
1,800
1,455
2,700
1,549 / 1,558
900 / 910
985 / 960
1,073 / 906
50

Engine

table fix area


Displacement (cc)
Max. Power (ps/rpm)
Max. Torque (kg•m/rpm)
Mated transmission


Gamma 1.6 Mpi	Smart Stream D 1.6	Nu 2.0 Mpi
1,591	1,598	1,999
128 / 6,300	136 / 4,000	152 / 6,200
15.8 / 4,850	28.6 / 1,500~3,000 32.6 / 2,000~2,250	19.6 / 4,000
6-speed MT / 6-speed AT	6-speed MT / 7-speed DCT	6-speed MT / 6-speed AT

Wheels

Next

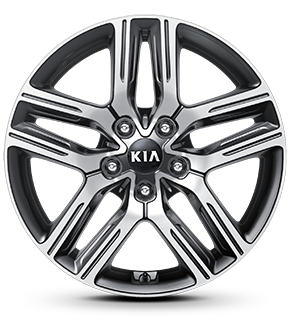

17-inch 225/45 R17 Alloy Wheel_Dark Metal Gray

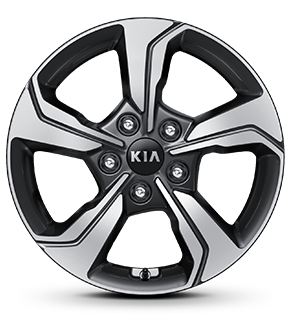

16-inch 205/55 R16 Alloy Wheel_Dark Metal Gray

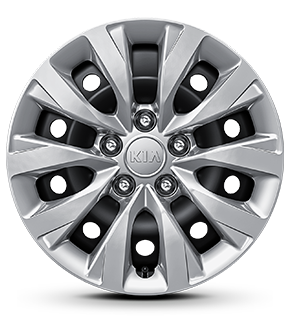

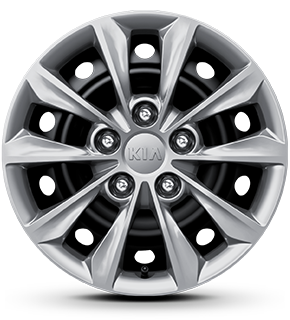

16-inch 205/55 R16 Steel Wheel (wheel cover)
15-inch 195/65 R15 Steel Wheel (wheel cover)

Prev

1
2
3
4

Specifications of the vehicle may vary by region.
All information and illustrations are based on data available at the time of publication and subject to change without notice.
Contact your local Kia dealer for current information.
